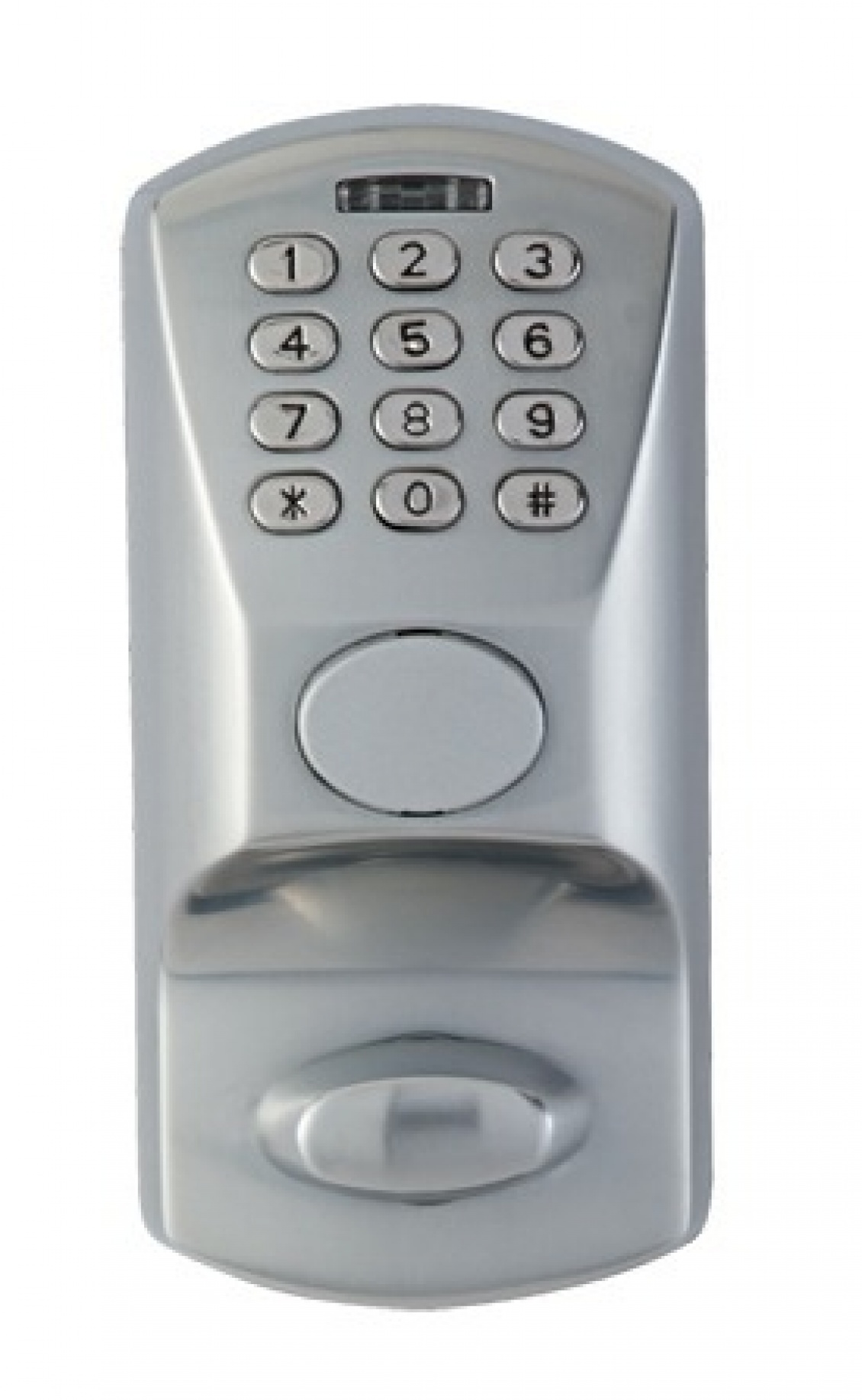

Kaba® E-Plex 1500 Series
The E-Plex 1500 Series provides exterior access by PIN code, while allowing free egress. This small, sleek keyless electronic pushbutton deadbolt lock replaces existing deadbolt and eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.
No Wires: Requires no wiring to or through the door—eliminates risk of damage from pinched wires that can result in costly callbacks
Locking Device Options: Mechanical 1″ throw deadbolt
Number of Codes: Multiple Users—100 Codes
Audit Trail: The most recent 1,000 lock events are recorded in memory, including the use of mechanical key override. Software is required to view audit events.
Programming: Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software
Key Override: Kaba 1539 6-pin cylinder; Schlage “C” Keyway
Operation Modes:
- PIN access
- Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours
- Lockout
Authority Levels (5): Authority levels allow who has access to specific lock operations, including:
- Master
- Manager
- Service User (one-time access or “come-and-go” access for 1 to 24 hours)
- Access User
- Maintenance Unit User
User Parameters:
- Code length–adjustable to accept 4 to 8 digits
- Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an
- adjustable period of 0 to 90 seconds
- Re-lock time—adjustable from 2 to 20 seconds
Construction: Heavy-duty Grade 2 lockset, solid brass cast exterior housing with deadbolt, metal pushbuttons
Backsets: Adjustable 2⅜” (60 mm) or 2¾” (70 mm)
Minimum Stile Recommended: 4″ (102 mm)
Door Preparation: ASA 161—easily installs on door preparation with one additional through bore hole; wood or metal doors
Door Thickness: 1⅝” (41 mm) to 2″ (50 mm)
Fire Rating: Meets UL 10C on fire-rated doors up to and including three hours UL fire-rated deadbolt
Durability: BHMA 156.36, Grade 2; meets requirements of ANSI A156.25 for dust, rain, humidity, and salt spray corrosion tests
Environmental: Outside and inside housing; -31 °F to 151 °F (-35 °C to 66 °C)
Warranty: Two-year warranty from date of installation; built-in warranty counter in lock memory
Standard Finishes:
- Satin Chrome 26D (626) housings and levers
Optional Finishes:
- Bright Brass 03 (605) housings and levers
- Dark Bronze 744 (10B)
